Encrypted DNS traffic
I still have a fun with configuration of
discworld.
Since last days I’m working on set up of DNS server.
I suppose that most of you know what DNS is and how it works, but if you don’t,
small explanation in one sentence: it takes human readable domain name like
github.com and translates it into IP address like this one 192.30.253.113.
You use it all the time, when you connect to a new page first
your browser asks about an IP address some DNS server.
DNS is very old protocol and like each old network solution has security
problems. The most ridiculous thing is that a DNS package may be easy
malformed. It’s one of the easiest method of Man in the middle attack – called
DNS spoofing. You ask for an IP address of some page and instead of correct
information somebody sends to you different IP. When you enter your user and
password on replaced page then your money will gone from real account.
Because it’s been a while when I last time set up a DNS server, I made a small
research to find out how to deal with mentioned problem.
First, I found DNSSec. I looks reasonable, the shortest
description of this protocol is: DNS with signatures. I said – Wow – it’s
all what I need. But, hold on a second, this protocol is known since a few years
and I didn’t hear about it. It sounds suspicious. I started digging deeper and
I found an answer:
But, since most of the servers on the internet are not using DNSSec yet
you will effectively cut yourself this way from most of the internet.
What? So, in other words, we have the protocol which prevents DNS spoofing
and administrators don’t use it. Shame on you!
Second solution DNSCrypt was mentioned on many pages as an
alternative for DNSSec. And again, the idea is the same – signatures.
I was keen on using it. I read this tutorial describing
how to encrypt DNS and after that I realised that I can do it better. I don’t
like the idea set up yet another proxy, because I have one and it also has to
deal with domain names. I use it from time to time and this time I suppose that
you heard about it – Tor. Most of people, when hear this name
think – crime, Silk Road, hackers. The worst things. But, it’s only a tool,
like a wrench – you can do it with it good and bad things. You decide about
an usage.
Configuration of bind9 with Tor as a DNS resolver is very simple.
In /etc/tor/torrc you need only add option DNSPort like this one:
# dirdival part
...
# DNS
DNSPort 9053
Also, in /etc/bind/named.conf.options you have to set your new DNS server:
forwarders {
127.0.0.1 port 9053;
};
Moreover, in /etc/dhcp/dhclient.conf it’s good idea to set:
prepend domain-name-servers 127.0.0.1;
Without line above file /etc/resolv.conf might be changed by resolvconf.
After that changes, all user and all programs from my new machine use Tor to
resolve DNS names.
How it works? We can ask for IP of github.com
dirdival@discworld:~$ nslookup github.com
Server: 127.0.0.1
Address: 127.0.0.1#53
Non-authoritative answer:
Name: github.com
Address: 192.30.253.112

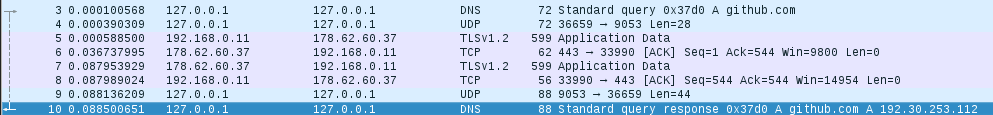

Under the hood bind9 sends query to our local Tor DNS server (port 9053).
Tor makes magic things – if you are curious read about tor-resolve and
this section from project page.
As a bonus, we don’t show our DNS queries others.
I hope you enjoy this post. The funniest things is that I even didn’t mention
why I use my local DNS server. The purpose of this is … maybe next time.
